Factory Lead Time

6 Weeks

Mounting Type

PCB, Through Hole

Package / Case

3-SIP Module

Number of Pins

3

Weight

1.9g

Voltage - Input (Nom)

12V

Power - Output (Max)

5W

Power Dissipation (Max)

5W

Operating Temperature

-40°C~85°C

Packaging

Tube

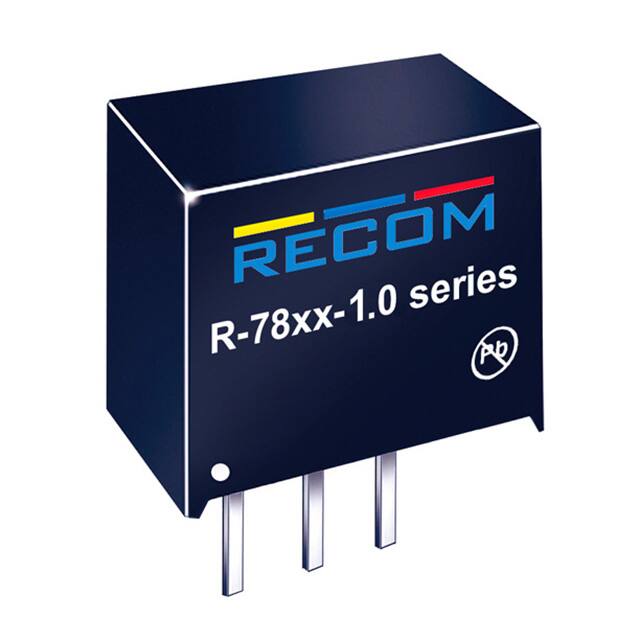

Series

INNOLINE R-78-1.0

Size / Dimension

0.45Lx0.30W x 0.40 H 11.5mmx7.5mmx10.2mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Type

Linear Regulator Replacement

Applications

ITE (Commercial)

Power Rating

5W

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

2.54mm

Depth

11.5mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

94%

Trim/Adjustable Output

NO

Current - Output (Max)

1A

Current - Output

1A

Output Power

5W

Max Output Voltage

5V

Voltage - Output

5V

Current - Output 1

1A

Nominal Input Voltage

12.5V

Isolation

Non-Isolated

Nominal Output Voltage

5V

Isolation Voltage

1.6kV

Max Input Voltage (DC)

18V

Min Input Voltage (DC)

6.5V

Features

OTP, SCP

Height

10.2mm

Width

7.55mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
